High-current pogo pins are designed to handle high electrical currents, typically used in applications that involve power transfer, such as in testing and programming devices, mobile phone charging, or automated assembly. As with any electrical component, the generation of heat is an important consideration when designing and using high-current pogo pins. Heat buildup in these pins can affect their performance, reliability, and longevity. In this detailed explanation, we will explore why high-current pogo pins may generate heat, the factors that influence heat generation, and how to mitigate or manage this heat.

1. What Are High-Current Pogo Pins?

Pogo pins, also known as spring-loaded connectors, are used to establish temporary electrical connections between two surfaces. They consist of a spring, pin, and contact housing. When pressed against a contact surface, the spring inside the pogo pin compresses, making electrical contact.

High current pogo pin are specifically designed to support higher currents (ranging from several amps up to 50A or more, depending on the design). They are commonly used in applications like power supply testing, charging, automotive electronics, and industrial equipment where a robust electrical connection is required.

2. Why Do High-Current Pogo Pins Generate Heat?

Heat generation in electrical components is primarily due to resistance to the flow of current. When current flows through a conductor, energy is dissipated as heat according to Joule's Law, which is defined as:

Where:

• $P$ is the power dissipated as heat (in watts),

• $I$ is the current (in amps),

• $R$ is the resistance of the conductor (in ohms).

This equation shows that the heat generated increases exponentially with the current passing through the pogo pin. When high currents are flowing through the pogo pin, the resistance of the internal contacts and materials (such as the spring and the pin) results in heat buildup. Factors that influence this heat generation include:

3. Factors Contributing to Heat Generation

3.1. Contact Resistance

The primary factor that contributes to heat generation in pogo pins is the resistance at the point of contact. The pogo pin must establish a reliable electrical contact with the test points or device contacts it is interacting with. Any microscopic imperfections at these contact points can increase resistance, causing localized heating. In high-current applications, even small increases in resistance can cause significant heat buildup.

3.2. Material Selection

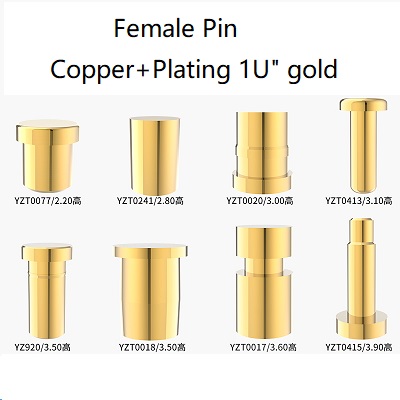

The material of the pogo pin plays a crucial role in heat generation. Common materials used for pogo pins include:

• Stainless steel

• Copper alloys

• Gold plating (on contact points for better conductivity)

While copper has excellent electrical conductivity, it can be soft and wear out quickly, whereas stainless steel provides better mechanical strength but is a poor conductor compared to copper. The balance between conductivity and durability is key, and in some cases, poor material choices could result in more heat generation.

3.3. Spring Compression Force

The force with which the spring inside the pogo pin pushes against the contact surface is another critical factor. Higher compression forces typically result in better electrical contact, reducing resistance. However, when the spring force is too high or uneven, it may cause increased friction and localized heating. A well-engineered pogo pin should strike a balance to avoid both poor contact (leading to high resistance) and excessive mechanical stress.

3.4. Current Rating and Load

High-current pogo pins are designed to handle more power, but they still have limits. If the current flowing through the pin exceeds its rated value, the increased resistance will cause more heat to be generated. Prolonged operation at or beyond the rated current can cause the pogo pin to heat up significantly, potentially leading to failure or damage. The current load is often directly proportional to the heat generated, so careful attention must be paid to not exceeding the pin’s current capacity.

3.5. Duration of Current Flow

The length of time the current flows through the pogo pin can also affect its temperature. Continuous or prolonged current flow generates more heat compared to short pulses of current. In applications such as device testing, where current may flow for extended periods, heat buildup can become a concern. In contrast, brief testing sequences might not cause significant heat issues.

4. Consequences of Heat Buildup in High-Current Pogo Pins

The generation of heat in high-current pogo pins is not just a minor concern; it has several significant consequences:

4.1. Decreased Performance

As heat accumulates in the pogo pin, the contact resistance can increase, leading to less efficient power transfer. This can degrade the performance of the device being tested or charged. For example, in high-speed data transmission applications, increased resistance could lead to signal distortion or slower charging times.

4.2. Wear and Tear

Heat can accelerate the wear of the pogo pin’s components, particularly the spring and contact points. Over time, the expansion and contraction due to heat cycling may cause physical degradation of the materials, leading to increased wear and reduced mechanical integrity. This wear can further exacerbate issues like poor contact and increased resistance.

4.3. Potential Failure

Excessive heat buildup can cause the pogo pin to fail completely. The internal components, especially the spring or the contact area, could degrade to the point where the electrical connection is lost entirely. In extreme cases, the heat could also cause the insulation material to melt, shorting the pin and creating a safety hazard.

5. How to Mitigate Heat Generation in High-Current Pogo Pins

5.1. Choosing the Right Pin for the Application

Selecting a pogo pin that is rated for the specific current load of the application is crucial. Overloading the pin is one of the primary causes of heat buildup. Manufacturers typically provide current ratings, and choosing a pin that can handle the peak current without exceeding these limits will help reduce the risk of overheating.

5.2. Proper Material Selection

Using materials with high electrical conductivity for the contact areas, such as gold or silver plating, can help reduce resistance. Similarly, ensuring the spring is made from a high-quality, corrosion-resistant alloy can increase both the pin’s conductivity and its durability.

5.3. Improving Thermal Dissipation

Designs that allow for better heat dissipation can help reduce the impact of heat buildup. This can include using pogo pins with larger surface areas for better thermal transfer, incorporating heat sinks, or using external cooling solutions to manage the temperature.

5.4. Maintaining Adequate Contact Force

Maintaining the right amount of contact force between the pogo pin and the surface it contacts is important. A force that is too low can cause increased resistance and heat generation, while excessive force can create frictional heating. Manufacturers often provide optimal compression force specifications to ensure efficient heat dissipation.

5.5. Periodic Testing and Maintenance

In high-current applications, regular testing and maintenance of the pogo pins can help identify issues like wear, contamination, or excessive heat buildup before they lead to failure. Regular inspection of the contact points for signs of discoloration, corrosion, or wear is important.

5.6. Current Pulsing

Where feasible, using pulsed current (instead of continuous current) can help minimize the amount of heat generated. By allowing the pogo pin to cool during the periods when current is not flowing, the overall temperature can be managed more effectively.

High-current pogo pins are essential components for applications that involve high power transfer. However, like all electrical components, they are subject to heat buildup due to resistance. Factors such as contact resistance, material choice, spring force, and the magnitude and duration of the current can all influence how much heat is generated.

Understanding the reasons behind heat generation and how to mitigate it can help in selecting and using high-current pogo pins effectively. Proper design, material selection, and operational practices can reduce the risks of excessive heat buildup, leading to improved performance and longer lifespan of the pogo pins.
